Mini Dollies for Helicopter

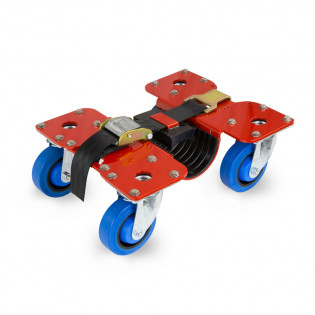

Mini Dollies

by Helitowcart

Built with extra smooth rolling casters, Mini Dollies are the ideal solution to support helicopter nose during handling. They are also great to support whole helicopter during maintenance.


Improved Hangar Handling Efficiency

- Supports skids at front to alleviate manual handling efforts
- Optimizes hangar space for maintenance & overhauls.

Sturdy Construction & Extra Smooth Roll

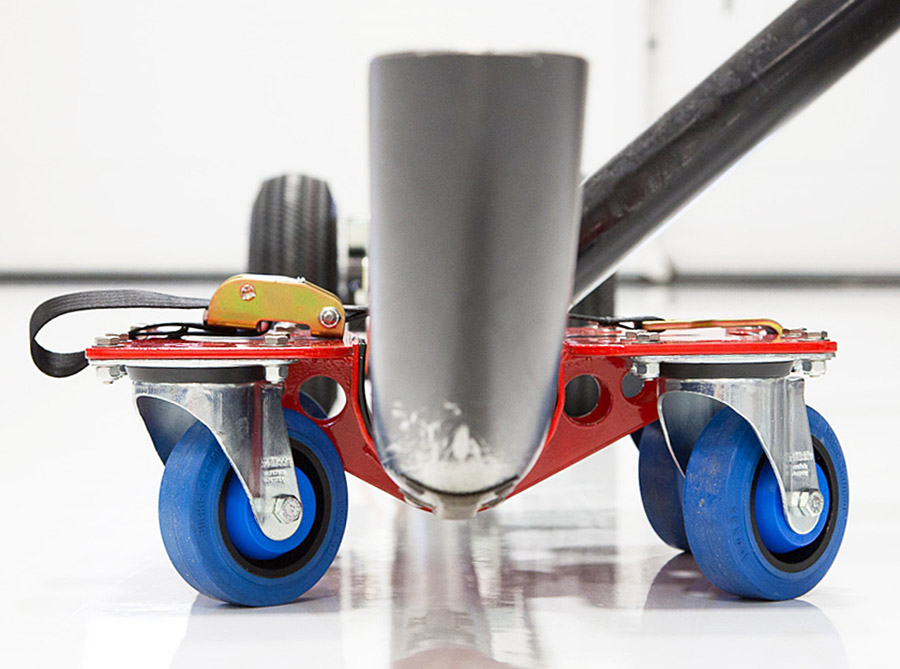

- Stays securely in line even when helicopter nose is lifted up
- High load capability to serve most helicopters. High quality dependable device.

Ideal for:

- Supporting helicopter nose when handling

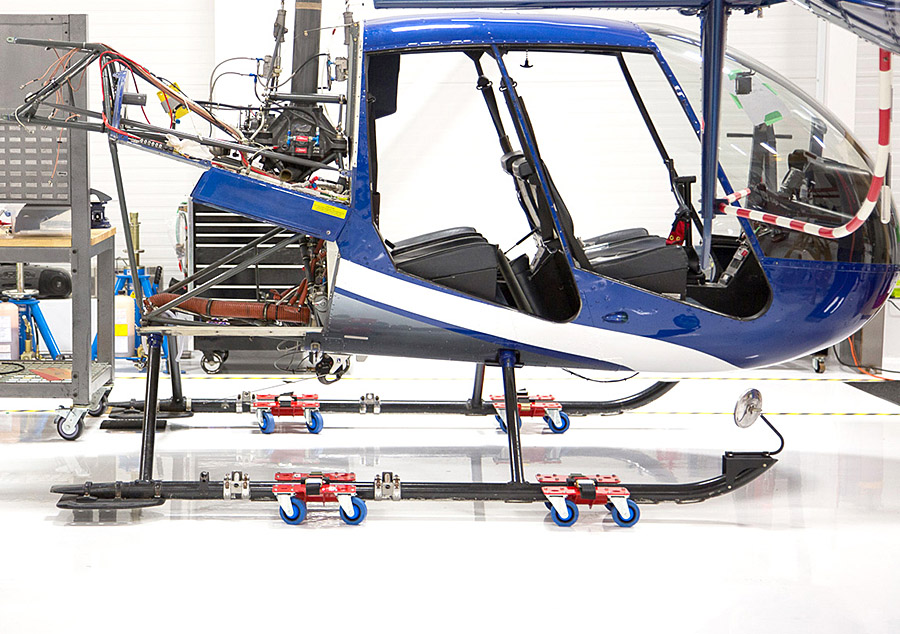

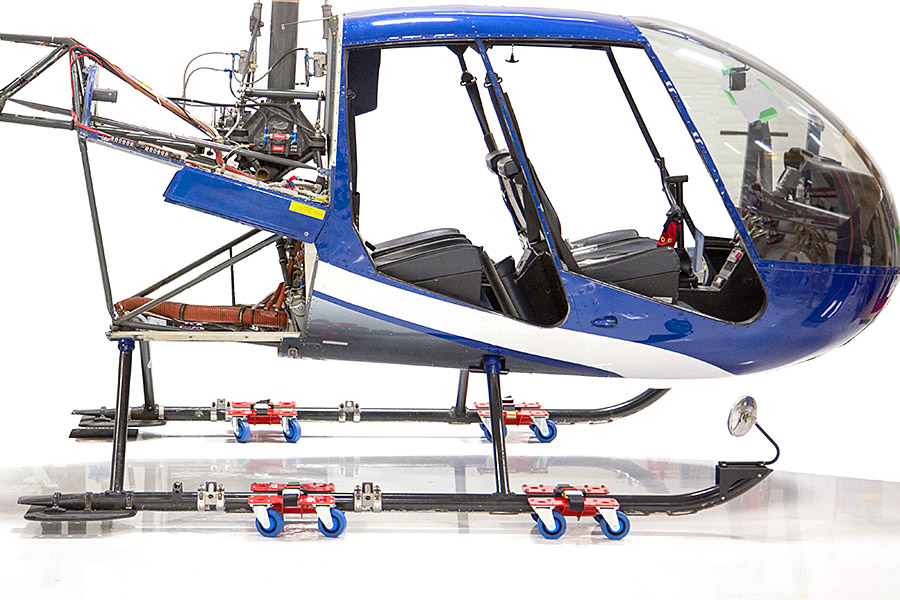

- Supporting whole helicopter for maintenance
- Bringing Mini-Dollies with helicopter for easy handling at destination

Specification Description

Max Capacity

1 pair  - 2500lbs (1135 kg)
2 pairs - 5000 lbs (2770 kg)

Skid Diameter Support

2.25"-3.87"(6 to 10 cm)

Compatible with

Most helicopters with Skid diameter up to 3.87" (10 cm)

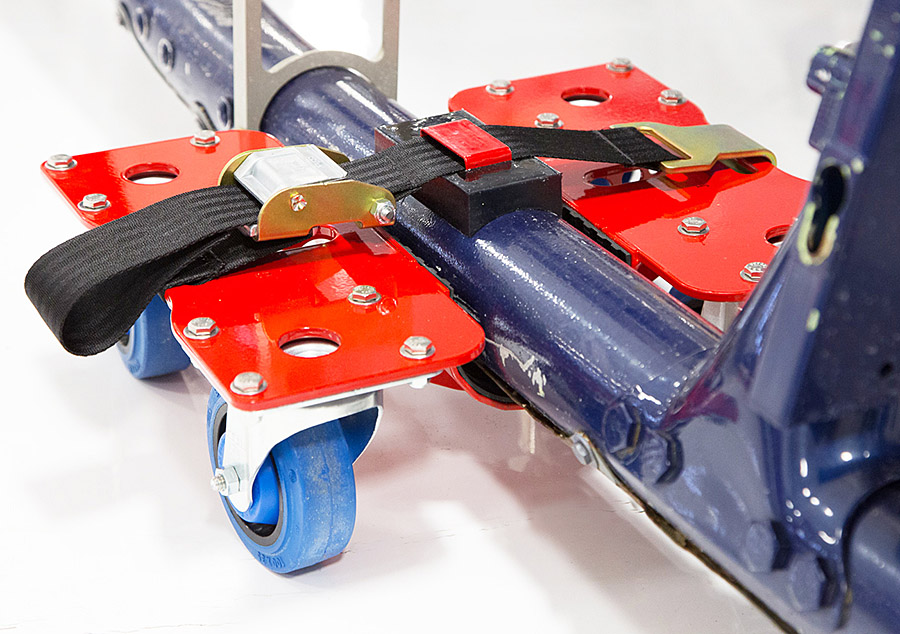

Safety Attachment

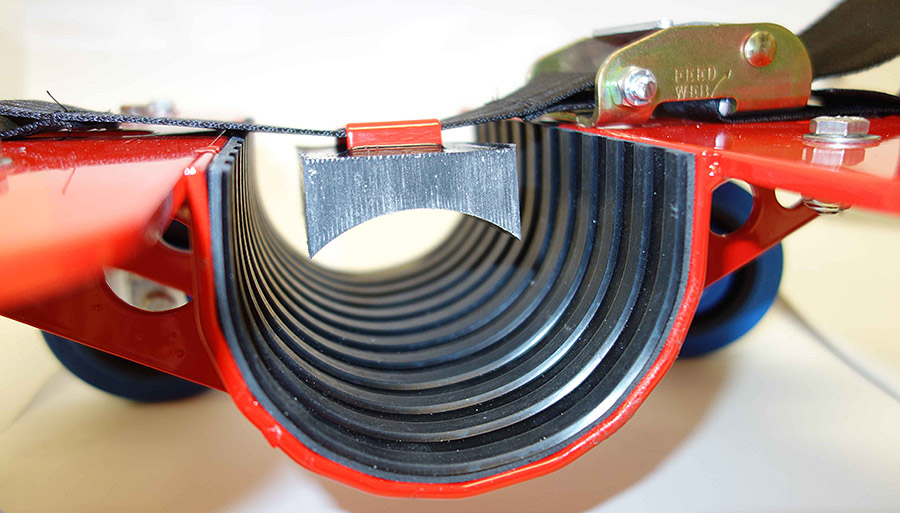

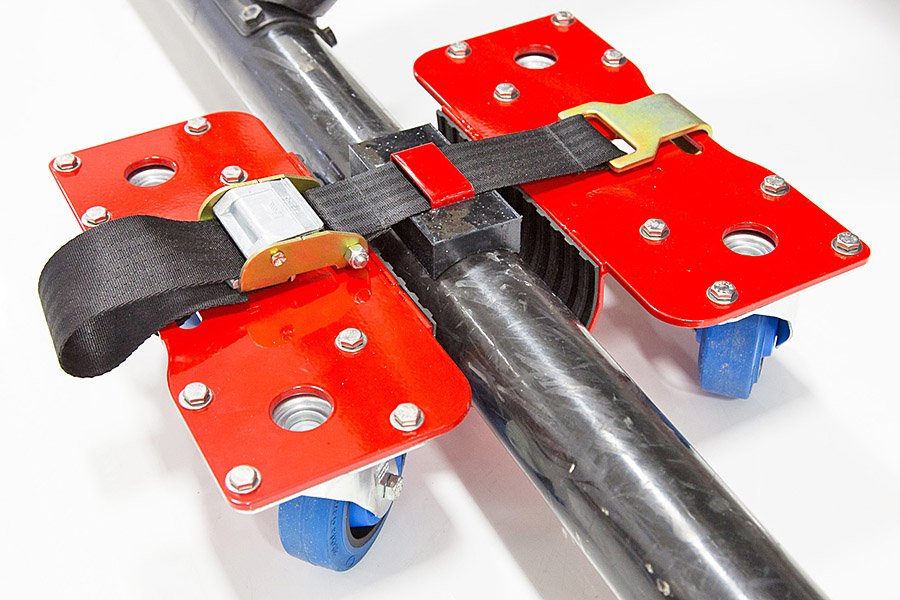

2"(5 cm) wide belt & cam buckle fitted with a polyurethane Skid retainer to maintain skid alignment when lifting skid off ground.

Mini Dollies Height

5.12" (13cm)

Skid Height

2.3" (6cm)

Frame

Painted Steel

Casters Specifications

DIAMETER
4" (100mm)

LOAD CAPACITY(PER CASTER)
330 lbs (150 kg)

WHEEL INNER RIM
High quality impact resistant nylon. Vulcanised center.

SWIVEL WHEELS:
High quality elastic solid rubber for smooth roll with low-noise operation & low rolling resistance.

WHEEL BRACKETS:
Made of pressed steel with double ball bearing in the swivel head. Ball protection by the special top plate and ball disc design. Riveting with minimal swivel head play. Smooth rolling characteristics providing increased life service achived by hardening of ball race grooves. Bolted wheel axle. Zinc-plated, blue-passivated, Cr6-free.

Shipping

Each kit includes a pair of Heli-Mini-Dollies. Ships in one 13 x 14 x 15 inch box (33 x 36 x 38 cm), package : 36 lbs (16.3 kg)

Models

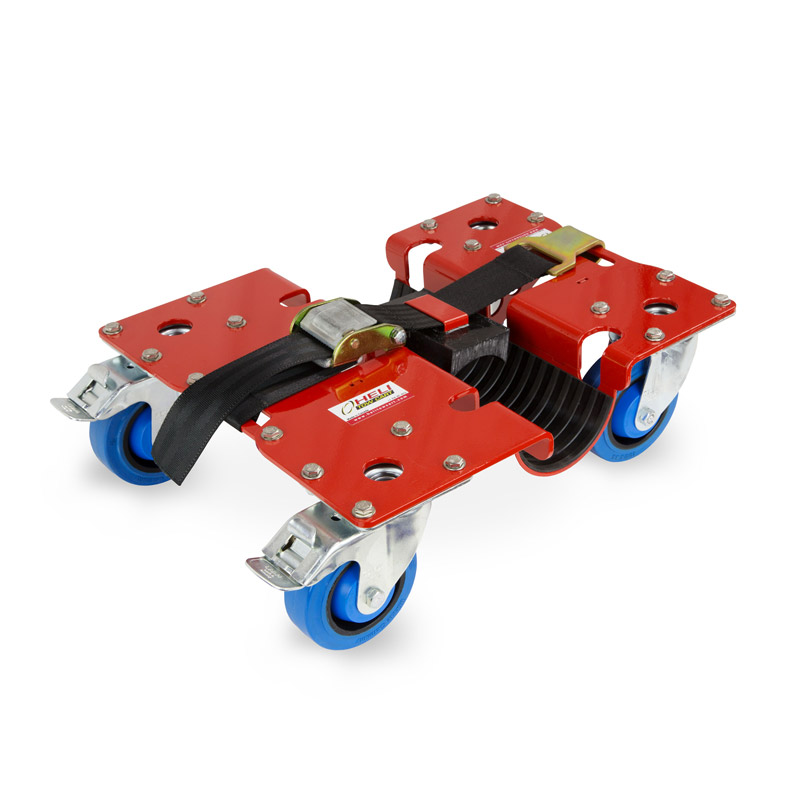

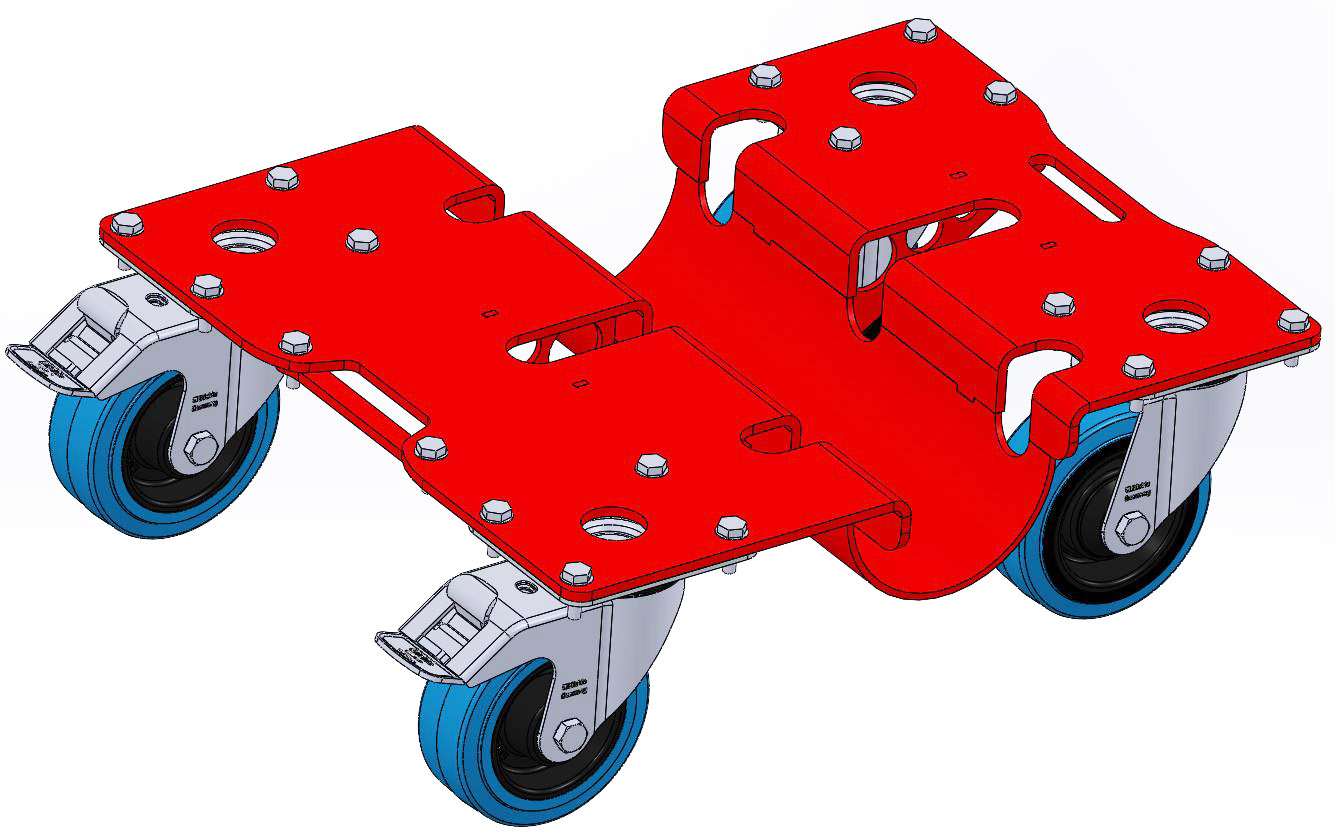

HMD-STD4 HMD-STD4-LCK - With 2 Locks

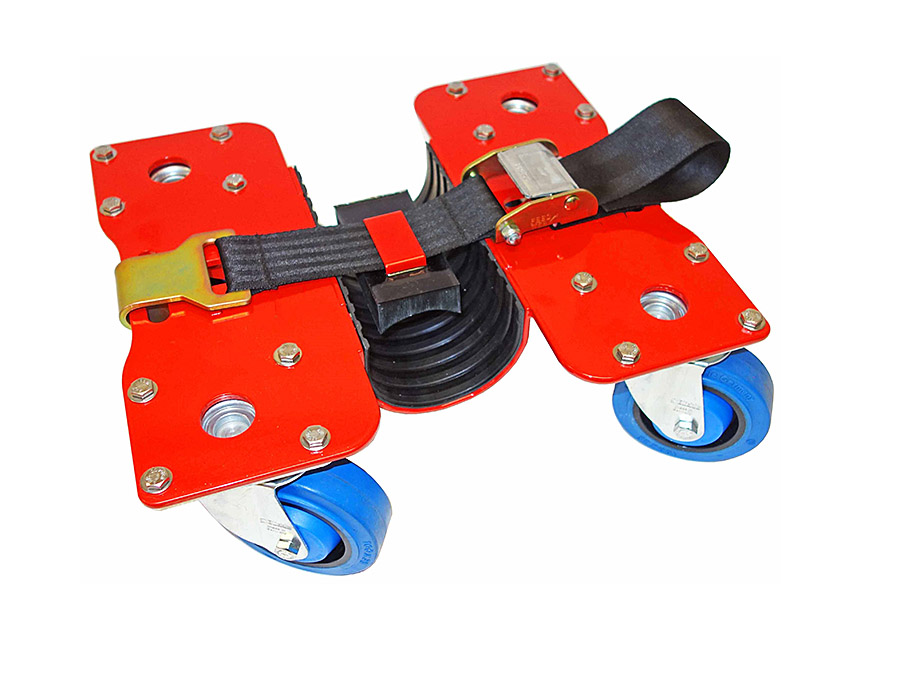

Mini Dollies HMD STD4

Dimensions: 12" x 14.25" (30cm x 36cm)


Mini Dollies HMD STD4


Dimensions: 14.5" x 16.12" (36cm x 41cm)
