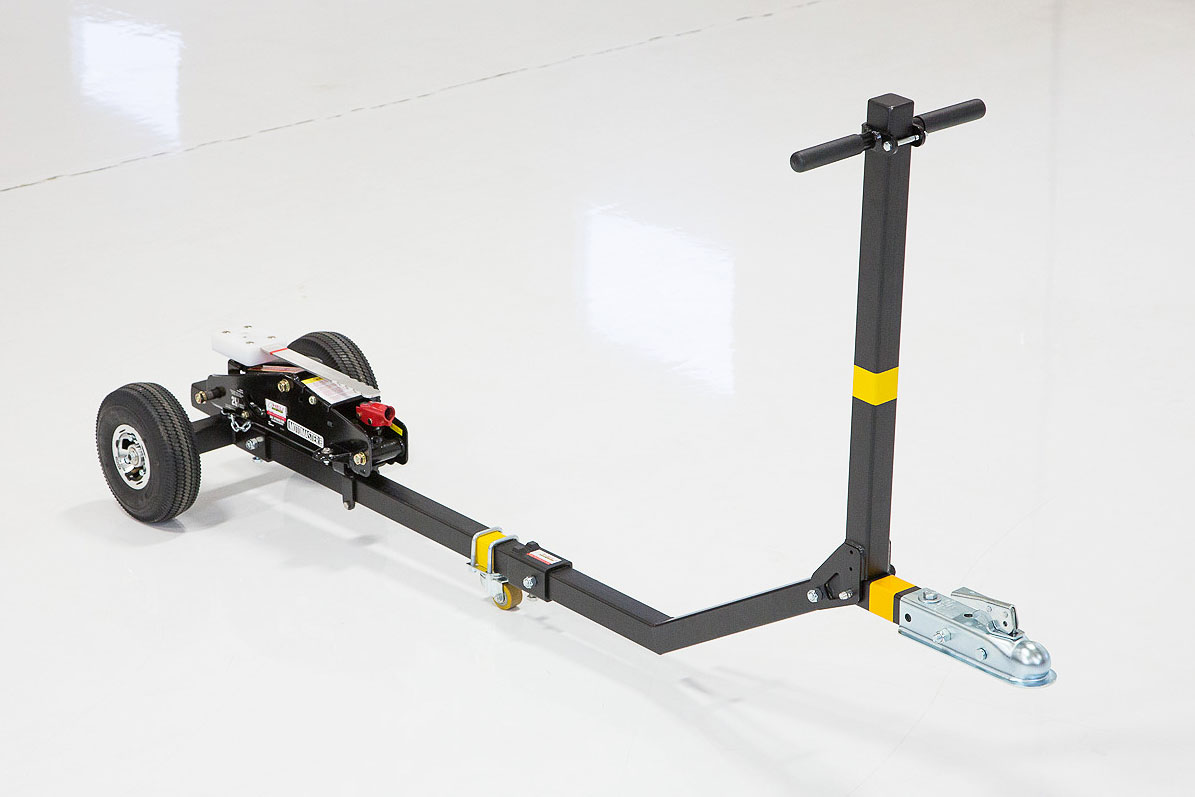

Helicopter Towbar with R44

Robinson Towbar

Model: HTB44

Tow your Robinson securely using your tractor or golf cart with this smartly designed tow bar or as a hand-held tow bar.

The HTB44 Towbar comes with the safest attachement system on the market for R22, R44 and R66. It locks helicopter ball into place and ensures helicopter belly protection when jacking.

Towbar video


Operation: Easy one man operation with small utility vehicule such as golf cart or quad. Can also be used manually with foldable handle.
Construction: Light Duty - 0.56" (14mm) axle
Pneumatic Wheels 10" x 3" (25cm x7.6cm)
Double ball bearing mounted hubs
Dimensions & Weight: Length: 84" (213cm)
Width: 21" (53cm)
Weight: 86 lbs (39kg)
Included Attachment AT44 - Attachment for R22/R44/R66

Very popular and safest on the market! Block locks helicopter ball into place and provides belly protection when jacking and when going over bumps. The attachement sytem is permanently bolted to jack head.
Foldable Handle The included foldable handle allows users to move a helicopter manually as well as with a vehicule. It can then be folded when coupled with a vehicule or simply to save space for storage.
MANUFACTURER MODEL
Robinson
R22
R44
R66

Available Couplers

(one included with the Towbar)


Coupler Description Images
2" (50.8mm) Trailer Coupler This coupler allows mounting a 2" (50.8mm) hitch ball
1 7/8" (47mm) Trailer Coupler This coupler allows mounting a 1 7/8" (47.6mm) hitch ball
O-Ring This coupler is often used with airport tugs

Robinson Towbar Photo Gallery

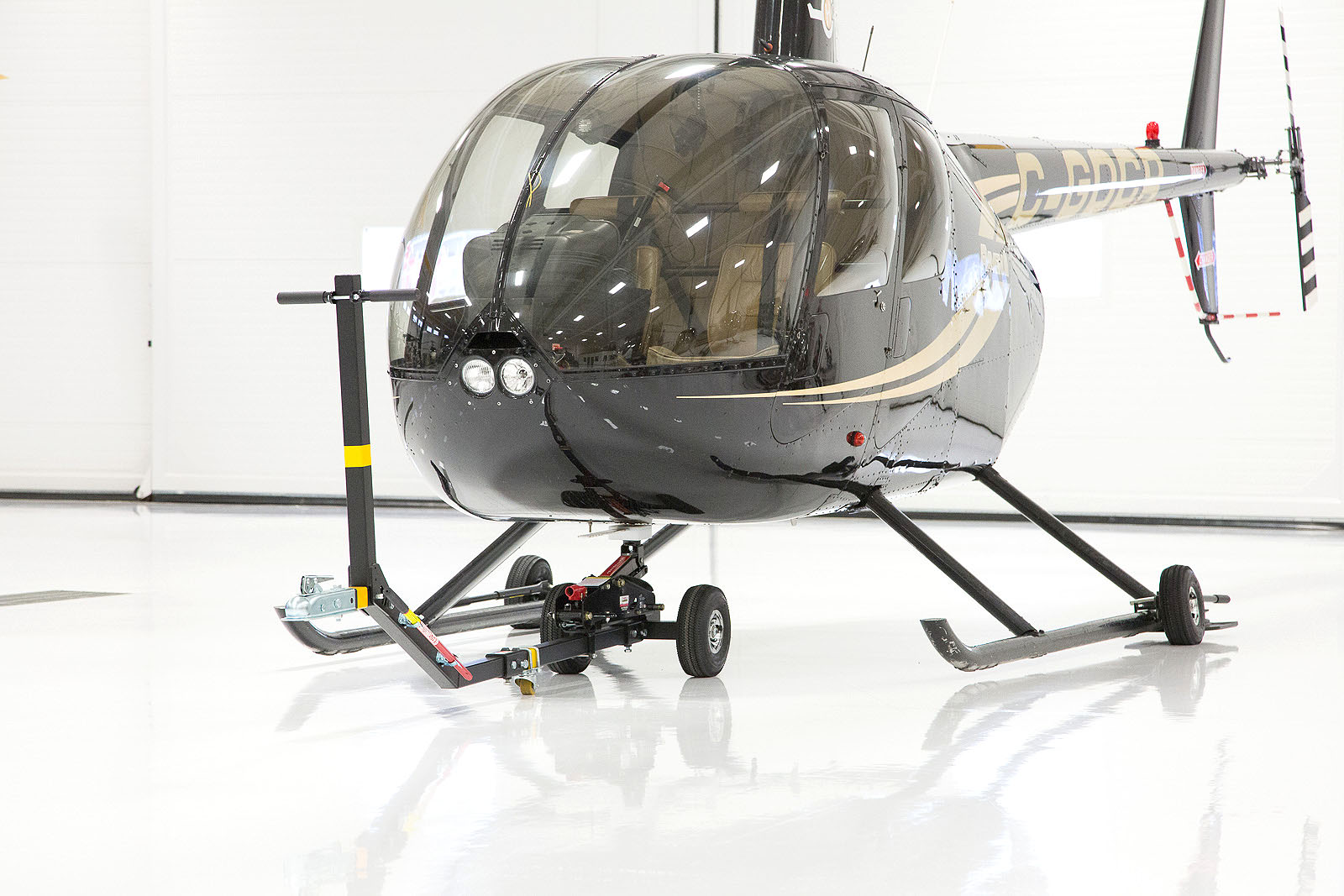

Robinson Towbar with R44

Robinson Towbar with R44

Robinson Towbar jack and AT44

Rearview of Robinson Towbar

Robinson Towbar used with foldable handle

Robinson Towbar used with golf cart

Robinson Towbar used with golf cart

Robinson Towbar used with golf cart

Robinson Towbar for Helicopter

Robinson Towbar for Helicopter

Robinson Towbar for Helicopter

Robinson Towbar for Helicopter

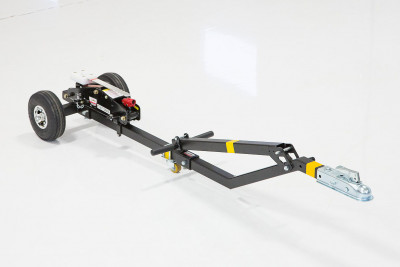

Robinson Towbar foldable arm

Robinson Towbar for Helicopter

Robinson Towbar for Helicopter with hitch ball coupler

Robinson Towbar for Helicopter with AT44 attachement system

Robinson Towbar attached to R44 on grass

Robinson Towbar attached to R44 on grass
