Available Models


LIGHT DUTY HELI CARRIER
V920

The V920 Heli Carrier adds to the pleasure of owners who wish to move their helicopter effortlessly. With it's remote control, the V920 maintains all the great manoeuvering radius turns as the V910.

V910 Model Specification
Capacity:Lifting up to 4000 lbs (1800 kg)
Operation: Remote Controlled to move HeliCarrier forward/backwards. Very wide 150° turn radius for optimal efficiency.
Drive Motors: 2 x 400w motors de-rated with sprockets Traction at support wheels.
Lifting: Up / Down with portable remote controller.
Hydraulic pump. 1.5 c.c. per rev.
2000w DC 24v.
1.6 liter tank.
Electricals:24v system
Controller 200 amps
Attachment lights: 2 x 9w Eagle Eyes
Converter 24v-to-12v for Attachment lights
Charger: 4amps. 115/230v. Included
Batteries:Uses 2 x Group 27 size batteries with threaded tips. Deap Cycle Lead Acid batteries readily available worldwide. Recommended: sealed AGM or GEL. Can also use unsealed WET batteries. Batteries Not Included. Helitowcart can supply batteries on request.
Shipping:Ships in easy to re-assemble modules. Crate is 5' x 6' x 30" (183x153x76cm)
Weight: 1600 lbs (727kg)
P/N Option Description Images
OLS
Light System
To ensure capability to attach and manoeuvre safely outside daylight hours and in darker hangars. Two powerful lights positioned to have a clear view of helicopter skids & tail. Adjustable direction for individual preference. Each Light is 27 Watts, 24v. 1750 LM.
OPS
24V Capability Power Supply
This Ground Power Unit brilliantly extends Carrier use to a second application. It allows to quickly provide power to helicopter using the carrier's own reserves. When needed, it can make the difference. Sourced from the 2 x 12V batteries (24V). With three prong receptacle.
OPCA
Pivotal Arms
Counterweight arms with adjustable pivot at cushion provide extra flexibility for preferred resting point. Also ideal to contour pop-out floats.

(Required for Bell 505)

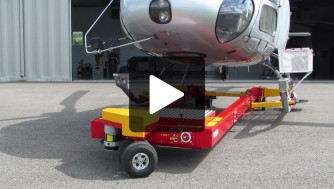

V920 with AS350
